WDGUD型－电动高真空球阀
WDGUD型电动高真空(压力)球阀是以电动装置驱动阀杆与球芯来执行启闭动作，达到接通或切断真空(压力)系统管路中的介质流。应用于真空、乳制品、酒业、生物工程、食品、制药、饮料、化妆品及化工领域。
WDGUD Electromagnetism Vacuum air valve
WDGUD electric high vacuum(pressure)ball valve uses electric device to drive the stem and ball for open and close, thus to put through or cut off the medium flow in vacuum(pressure)pipeline. It is used in the areas of vacuum, dairy products, breweries, biological engineering, foddstuff, pharmaceuticals, drinks, cosmetics and chemicals.
主要技术性能Main Technical Performance
|
阀门漏率：Valve Leak Rate |
≤1.3×10-4Pa.L/S. |
|
适用温度：Applicable Temperature |
-30～+150℃
-30～+150℃(PPL密封) |
|
关闭时间：Close time |
≤30S |
|
适用范围：Applicability |
|
连接型式 Loose Flange |
使用压力范围(Pa) |
|
活套法兰(GB6070、JB919) |
0.6×106～1.3×10-4 |
|
焊接法兰(GB6070、JB919) |
1.6×106～1.3×10-4 |
|
快卸法兰(GB4982) |
0.1×106～1.3×10-4 |
|
螺纹连接 Threaded Connection |
1.6×106～1.3×10-4 |
主要零件材料 Materials of Main Parts
阀体、阀盖、阀杆：不锈钢 Body, disc and stem: stainless steel.
密封件：四氟乙烯、氟橡胶、PPL。Sealing element: NBR, Viton, PPL.

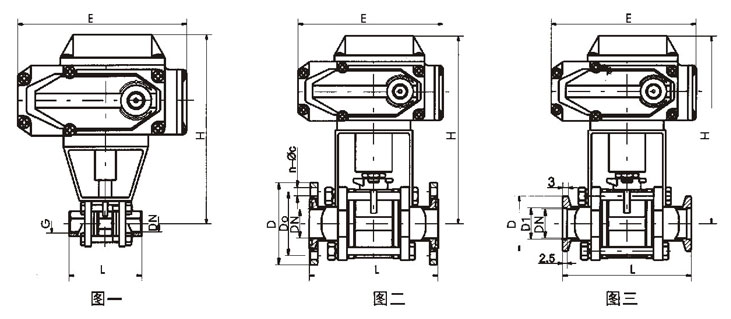

外形及连接尺寸(mm)(JB919) Overall and Connection Dimensions(mm)
螺纹连接的外形及连接尺寸(图一)
|
Model
型号 |
DN |
G |
H |
E |
L |
|
WDGUD-10(G) |
10 |
1/4" |
153 |
157 |
68 |
|
WDGUD-16(G) |
16 |
1/2" |
172 |
157 |
72 |
|
WDGUD-20(G) |
20 |
3/4" |
178 |
157 |
82 |
|
WDGUD-25(G) |
25 |
1" |
187 |
157 |
90 |
|
WDGUD-32(G) |
32 |
1-1/4" |
206 |
157 |
112 |
|
WDGUD-40(G) |
40 |
1-1/2" |
212 |
157 |
120 |
|
WDGUD-50(G) |
50 |
2" |
265 |
157 |
145 |
|
WDGUD-63(G) |
63 |
2-1/2" |
305 |
207 |
185 |
|
WDGUD-80(G) |
80 |
3" |
330 |
207 |
210 |
|
WDGUD-100(G) |
100 |
4" |
350 |
207 |
268 |
活套法兰连接(GB6070)(图二)
|
Model
型号 |
DN |
D |
Do |
H |
E |
L |
n-φc |
|
WDGUD-10(F) |
10 |
55 |
40 |
153 |
157 |
84 |
4-φ6.6 |
|
WDGUD-16(F) |
16 |
60 |
45 |
172 |
157 |
84 |
4-φ6.6 |
|
WDGUD-25(F) |
25 |
70 |
55 |
187 |
157 |
114 |
4-φ6.6 |
|
WDGUD-32(F) |
32 |
90 |
70 |
206 |
157 |
140 |
4-φ9 |
|
WDGUD-40(F) |
40 |
100 |
80 |
212 |
157 |
160 |
4-φ9 |
|
WDGUD-50(F) |
50 |
110 |
90 |
265 |
157 |
170 |
4-φ9 |
|
WDGUD-63(F) |
63 |
130 |
110 |
305 |
207 |
195 |
4-φ9 |
|
WDGUD-80(F) |
80 |
145 |
125 |
330 |
207 |
203 |
8-φ9 |
|
WDGUD-100(F) |
100 |
165 |
145 |
350 |
207 |
280 |
8-φ9 |
快卸法兰连接(GB4982)(图三)
|
Model
型号 |
DN |
D1 |
D |
H |
E |
L |
|
WDGUD-10(KF) |
10 |
12.2 |
30 |
153 |
157 |
84 |
|
WDGUD-16(KF) |
16 |
17.2 |
30 |
172 |
157 |
84 |
|
WDGUD-25(KF) |
25 |
26.2 |
40 |
187 |
157 |
114 |
|
WDGUD-32(KF) |
32 |
34.2 |
55 |
206 |
157 |
140 |
|
WDGUD-40(KF) |
40 |
41.2 |
55 |
212 |
157 |
160 |
|
WDGUD-50(KF) |
50 |
52.2 |
75 |
265 |
157 |
170 |
|
